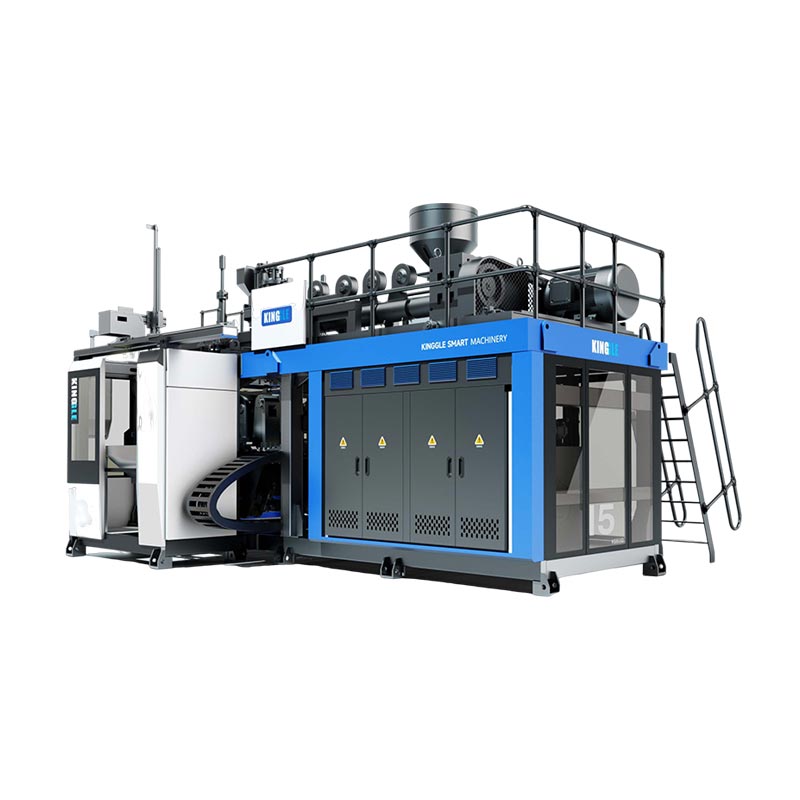

15L na-alụbeghị di na nwunye

Model:KGB15L

Ezubere maka mmepụta olu dị elu, nke a na-alụbeghị di na-aga n'ihu igwe na-eme ka igwe na-emepụta ihe ruru 15l. Ememe ya na-agbanwe agbanwe maka enweghị usoro ịgbanwee n'etiti otu isi isi na ọtụtụ isi, na-ahụ maka ịdị mma dị iche iche nha. You nwere ike ịzụta 15l na-eji otu na-akpụ akpụ igwe na ụlọ ọrụ anyị.

Olu: 15lIbu ibu: 7.5T

Zipu ajụjụ

Nkọwa ngwaahịa Specification Application

Site na shampoo karama na bọọma eji igwe na-eme ihe, ọgbụgba a na-egbu egbu na-akpụ akpụ igwe na-enye ohere dị mma ma na-agbanwe agbanwe. Welite ikike nrụpụta gị na igwe a dị ike ma dịkwa ukwuu.

Atụmatụ na uru

Isi ihe eji eme ihe eji eme ihe maka ikike nri, na-achịkwa ọkpụrụkpụ mgbidi dị iche iche, na-emeziwanye ike nke ngwaahịa ahụ, ma na-eme ka mmepụta dị elu nke 1l arịa dịkwuo elu.
N'ịdabere na sistemụ elektrọnik dị elu, dị ka a ga - asị na usoro a na - eme ihe dị iche iche, dị ka ọnọdụ dị iche iche na - achịkwa usoro dị iche iche, yana ọrụ nhazi ntuziaka. Ndị na-ahụ maka ọrụ nwere ike ime ngwa ngwa dị mfe dịka ọnọdụ ọrụ n'ezie si dị, na-ejide na mmepụta ahụ na-atụle mkpa zuru oke nke ahịa dị iche iche. Ọ nwere ike rụpụta ihe dị iche iche 15l nwere usoro dị iche iche dị ka otu-oyi akwa na okpukpu abụọ, na ihe oriri na ọreụ na ihe ọveraụ, ngwaahịa na-ehicha ngwaahịa na mpaghara ndị ọzọ.

Specifications

serial number	Material PE、PP、ABS ...	Mold closing oil cylinder(single cylinder)
serial number	Material PE、PP、ABS ...	Machine model:KGB15L
Specification
1	Max container capacity	15L
2	Output(dry Cycle)	450 PC/HR
3	Machine Dimension(L×W×H)	4.5M x2.2 M x2.8 M
4	Machine weight	7.5 T
Clamping Unit
1	Clamping force	165 KN
2	Mold platen size(W×H)	500 MM x 550 MM
3	Platen openingstroke	280 MM - 680 MM
4	Platen moving stroke	600 MM
5	Max mold size(W×H)	580 MM×500 MM
6	Mold thickness	300 MM - 380 MM
Power
1	Servooil pump motor power	18.5KW
2	Servo pump displacement	130 L/MIN
3	Blowpressure	0.6 Mpa
4	Air consumption	0.8 M²/MIN
5	Cooling water pressure	0.2-0.3 Mpa
6	Water consumption	70 L/min
7	Average energy consumption	25 KW-34 KW
Extruder unit
1	Screw diameter	75 MM
2	Screw L/D ratio	25 L/D
3	Melting capacit for HDPE	100 Kg/hr
4	Number of heating zone	4 ZONE
5	Screw heating power	16 KW
6	Screw fanpower	0.6 KW
7	Extruder motor power	30 KW
Die head
1	Number of heating sections	3*8 ZONE
2	Heating power	6.5 KW
3	Maxdie-pin diameter	220 MM
4	2Center distance of double die head	240-280MM
5	2MTMax die-pindiameter	150MM
