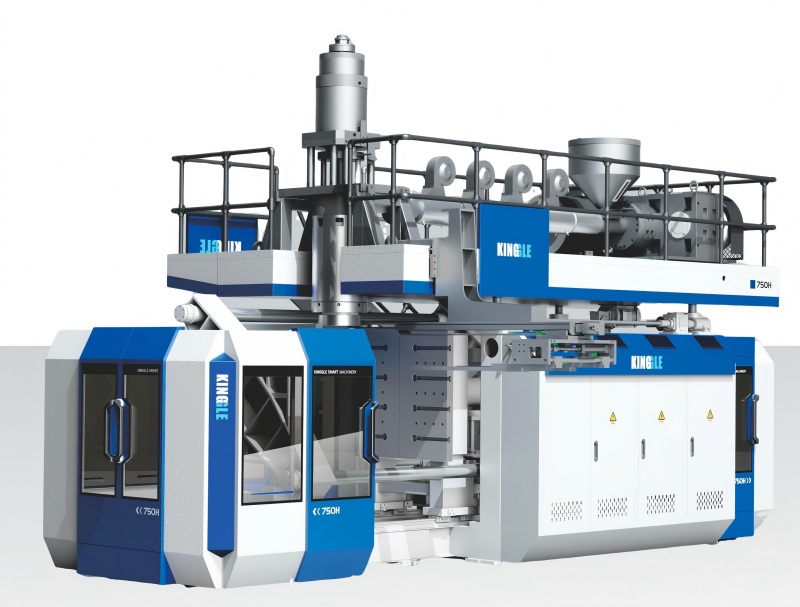

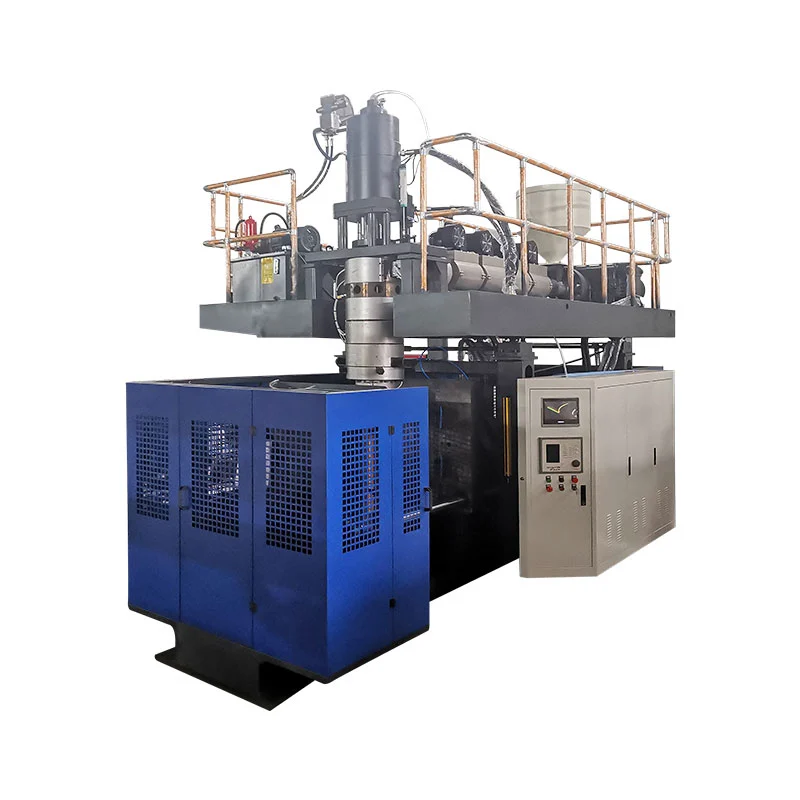

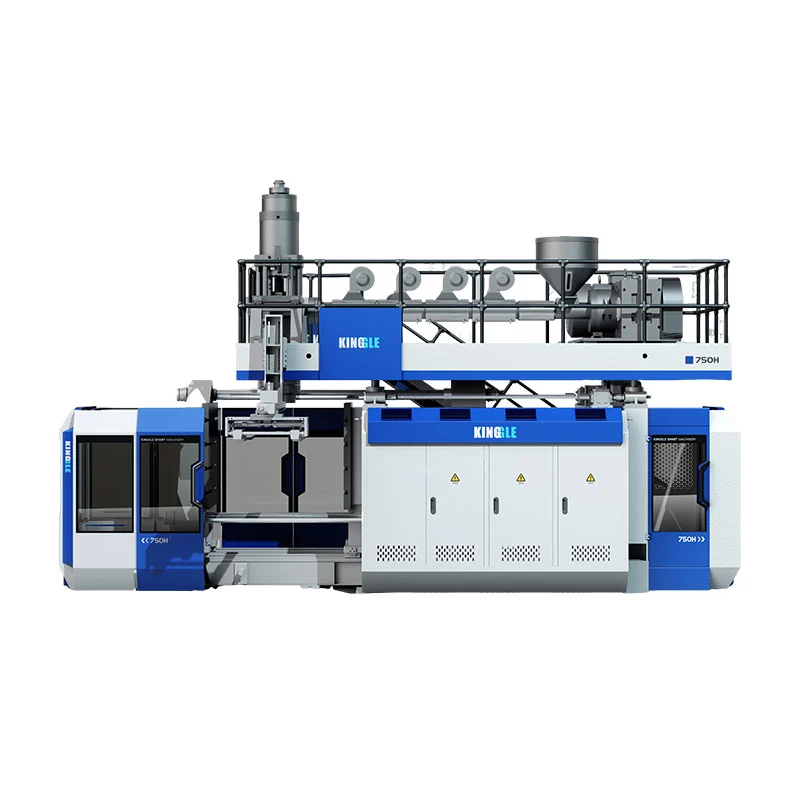

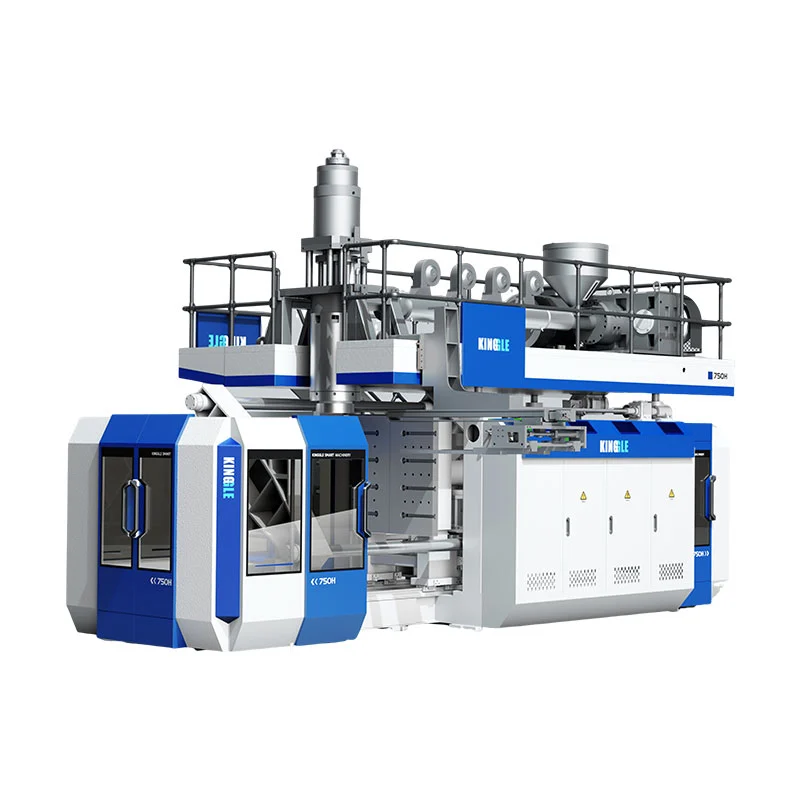

60L chịkọtara igwe na-egbu egbu

Model:KGB90A

Usoro oghere a na-emechi emechi, na-egosi okpukpu abụọ na-adọkpụ nke ọma na cylinder na-ahụ maka mgbarụ ahụ, na-enye arụmọrụ dị elu na arụmọrụ. Ejiri usoro nchekwa ngwa ngwa maka mmeghachi omume ngwa ngwa na nchekwa ọkụ, nke a 60L chịkọtara igwe na-eme ka igwe dị iche iche, site na obere akpa na mpịakọta buru ibu.

Olu: 60lIbu ibu: 14t

Zipu ajụjụ

Nkọwa ngwaahịa Specification Application

Ihe atụ KGB90a, onye na-eduzi isi na-eduga igwe, gụnyere mog 100 onye na-achịkwa, ogwe aka robot, na-eme ka arụpụta ihe na ngwaahịa na ngwaahịa. Nke a na igwe na - eme ka igwe na - eme ihe dị iche iche dị mma maka ngwa dị iche iche, gụnyere bọket mmiri na - eme ka ọpụpụ igwe, ihe ụmụaka ji egwuri egwu, ihe ụmụaka ji egwuri egwu, na ihe mgbochi.

Atụmatụ na uru

Ihe nlereanya a bụ usoro mmeghe na ụdị mmechi, na-eji okpukpu abụọ nke eriri okpukpu abụọ na-emechi usoro na-emebe, na cylinder mmanụ
● Chebe Cylinder South Usoro Usoro
● ● Oke olu 60l
Kwesịrị ekwesị maka barel kemịkalụ kemịkalụ, nnukwu ihe ụmụaka ji egwuri egwu, ọdụ ụgbọ ala AMC, wdg.
● Iji teknụzụ pụrụ iche, usoro nrụpụta usoro, nnukwu clamping ike, ngwa ngwa mwepụ ngwa ngwa, obere ngwa ngwa

60L accumulate blow molding machine

Specifications

Serial number	Material PE、PP、ABS...	Fixed open- closing type Mold closing oil cylinder(single cylinder)
Serial number	Material PE、PP、ABS...	Machine model:KGB90A
Specifications
1	Max container capacity	60 L
2	Output(dry Cycle)	500 PC/HR

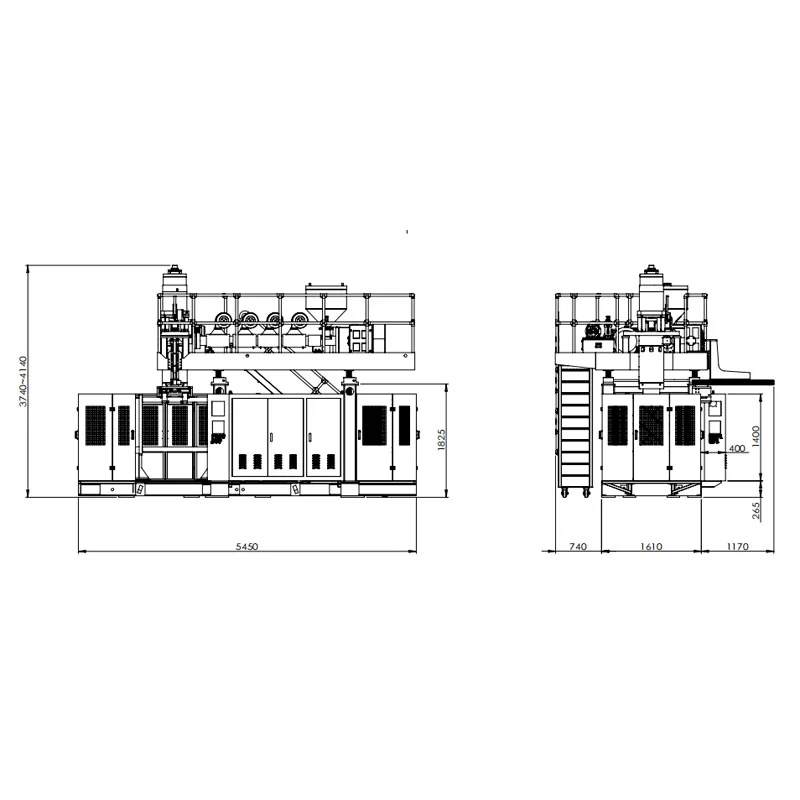

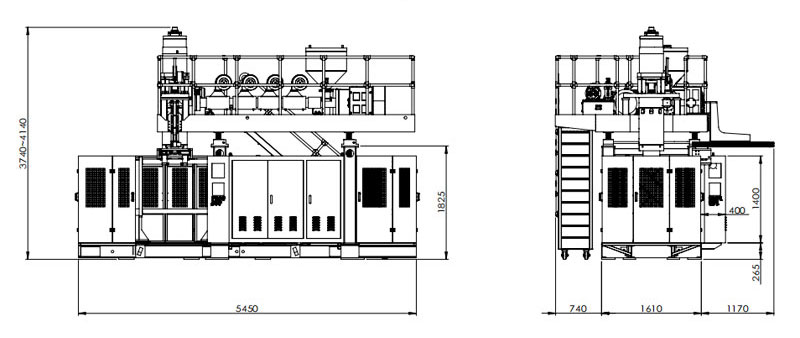

3	Machine Dimension(L×W×H)	5.45 M x 3.5 M x 4.2 M
4	Machine weight	14 T
Clamping Unit
1	Clamping force	280 KN
2	Mold platen size(W×H)	960 MM x 980 MM
3	Platen opening stroke	450 MM-1050 MM
4	Platen moving stroke	500 MM
5	Max mold size(W×H)	700 MM x 980 MM
6	Mold thickness	460 MM-550 MM
Power
1	Servo oil pump motor power	18.5 KW
2	Servopump displacement	150 L/MIN
3	Blow pressure	0.8 Mpa
4	Air consumption	1 M³/MIN
5	Cooling water pressure	0.3 Mpa
6	Water consumption	90 L/min
7	Average energy consumption	35 KW-45 KW
Extruder unit
1	Screw diameter	90 MM
2	Screw L/D ratio	24 L/D
3	Melting capacit for HDPE	130 Kg/hr-160 Kg/hr
4	Number of heating zone	4 ZONE
5	Screw heating power	17.6 KW
6	Screw fan power	0.5 KW
7	Extruder motor power	45 KW
Die head
1	Number of heating sections	5 ZONE
2	Heating power	26.8 KW
3	Max die-pin diameter	320 MM
4	Accumulator capacity	6.6 L
5	(PE)Accumulator weight	4.95 KG
