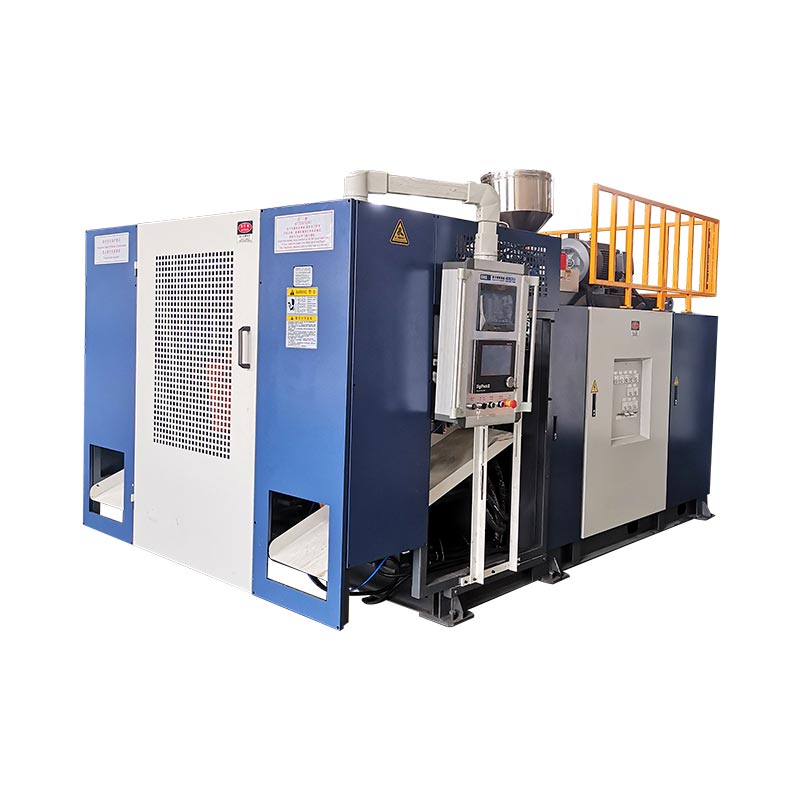

5l na-alụbeghị di

Model:KGB5L

Ahụmịhe ngbanwe na arụmọrụ nke naanị ọdụ ụgbọ mmiri na-aga n'ihu. Ezubere ya na 5l arịa, nke 5l na-eji otu na-azọpụta igwe na-enye nhazi usoro ọdịnala, gụnyere oghere nke abụọ raara onwe ya nye ịkpụ nhọrọ nhọrọ, iji gboo mkpa mmepụta gị.

Olu: 5lIbu ibu: 3.0t

Zipu ajụjụ

Nkọwa ngwaahịa Specification Application

Ma ịchọrọ ka ọ bụrụ ọdụ ụgbọ ala raara onwe ya nye ma ọ bụ mkpa imeghari iji gbanwee ahịa, igwe a na-enye oke na arụmọrụ na arụmọrụ. Kpọtụrụ anyị taa iji chọpụta ọnụahịa asọmpi anyị ma chọpụta etu igwe a nwere ike ibuli ike gị.

Atụmatụ na uru

Otu usoro nsụgharị na-agbanwe agbanwe, a na-eji usoro nhazi mmefu na-esi ísì ụtọ iji hụ na arụmọrụ na-agbanwe agbanwe.
E ji usoro nri dị ịtụnanya kee ya, na-eme ka ihe onwunwe kee ya.
A na-akwado usoro elektrọnik dị elu site na Mitsubishi PLC, ma na-abịa na bọtịnụ ntuziaka, na-enye ohere ịgbazinye na mmezi ziri ezi na ndozi ziri ezi.
● With a maximum product volume capacity of 5L, it stands as the top choice for low-volume production of containers ranging from 2L to 5L.
● Na usoro nke njirimara Ngwaahịa, ọ na-enye nhọrọ dị iche iche gụnyere otu-oyi akwa, okpukpu abụọ, akụkụ atọ, yana ụzọ dị iche iche, yana okporo osisi dị iche iche iji zute ihe ahịa dị iche iche.
● Sigmpruulic sistemụ nwere usoro dị iche iche, na-ebugharị ọrụ dị elu na ọsọ ọsọ ọsọ ọsọ, bulite arụmọrụ arụpụtara.

Specifications

serial number	Material PE、PP、ABS ...	Mold closing oil cylinder(single cylinder)
serial number	Material PE、PP、ABS ...	Machine model:KGB5L
Specification
1	Max container capacity	5L
2	Output(dry Cycle)	500 PC/HR
3	Machine Dimension(L×W×H)	3.1M x2.2 M x2.5 M
4	Machine weight	3.0 T
Clamping Unit
1	Clamping force	65 KN
2	Mold platen size(W×H)	368 MM x 450 MM
3	Platen openingstroke	188 MM -538 MM
4	Platen moving stroke	420 MM
5	Max mold size(W×H)	410 MM×450 MM
6	Mold thickness	200 MM - 310 MM
Power
1	Servooil pump motor power	15KW
2	Servo pump displacement	100 L/MIN
3	Blowpressure	0.6 Mpa
4	Air consumption	0.6 M²/MIN
5	Cooling water pressure	0.2-0.3 Mpa
6	Water consumption	60 L/min
7	Average energy consumption	16 KW-25 KW
Extruder unit
1	Screw diameter	60 MM
2	Screw L/D ratio	25 L/D
3	Melting capacit for HDPE	55 Kg/hr
4	Number of heating zone	3 ZONE
5	Screw heating power	12.6 KW
6	Screw fanpower	0.25 KW
7	Extruder motor power	15 KW
Die head
1	Number of heating sections	3*8 ZONE
2	Heating power	3.7 KW
3	Maxdie-pin diameter	150 MM
4	2Center distance of double die head	150-180MM
5	2MTMax die-pindiameter	80MM
