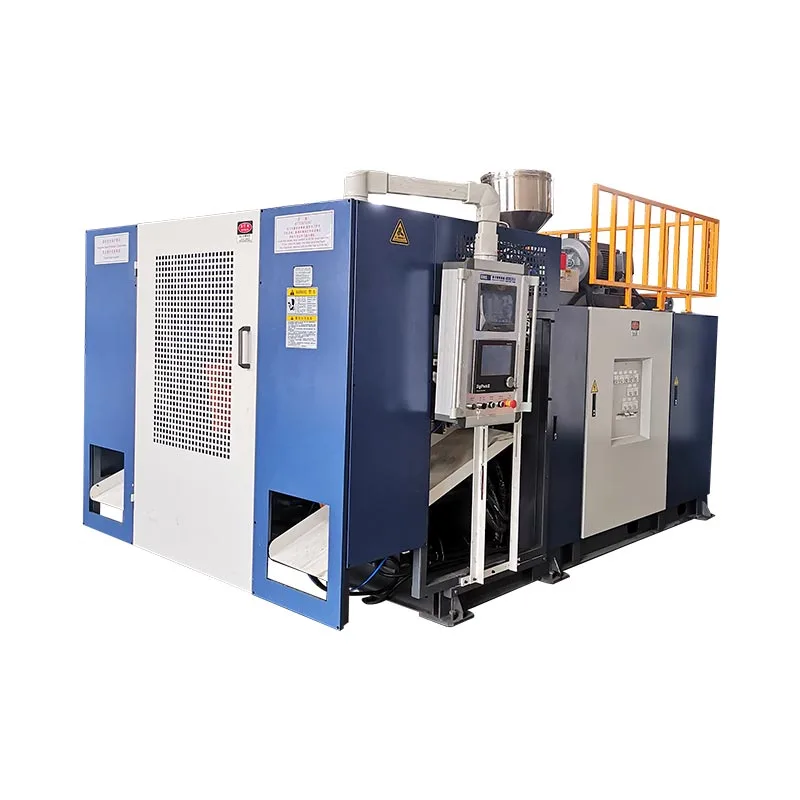

5l okpukpu abụọ na-enwu mma igwe

Model:KGB5D

Bulite imepụta gị na nke ukwuu 5L ọdụ ụgbọ mmiri na-eme ka igwe na-akpụ akpụ. Ngwaọrụ a dị elu na-enye nhazi mgbanwe, gụnyere 2, 3, ma ọ bụ 4 isi okwu ntọala, iji nabata ọtụtụ akpa sizes.

Olu: 5lIbu ibu: 5.2t

Zipu ajụjụ

Nkọwa ngwaahịa Specification Application

Site na karama olu na nnukwu akpa 5l, a 5L ọdụ ụgbọ mmiri na-eme ka igwe na-eme ihe Mmepụta ọrụ nke ọma ma na-agbanwe agbanwe. Ezigbo maka ngwa dị iche iche, gụnyere ngwugwu ịsa ahụ na-egbu egbu na-azọcha igwe, ọ Na-ebulikwa mmepụta pụrụ iche ma jiri ego ịlaghachi na itinye ego.

Atụmatụ na uru

Pụgharịa nsụgharị oge abụọ na-agbanwe agbanwe, na-eji vaffle verve valve maka ebugharị, na-arụ ọrụ nke ọma ma kwụsie ike
● Ọnụọgụ dị na-anwụ anwụ
● Sistem Njikwa elektrọnik na-anakọta MitSubishi PLC njikwa, bọtịnụ ejikọtara ọnụ na-akwado mgbazi ọrụ na ndozi.
● Olu ngwaahịa kachasị bụ 5l, nke bụ ihe egwu na-eme ka a na-eme ihe maka mmepụta nke ihe na-erughị 2-5l.
● Dị ka njirimara, enwere ike ekewa ya n'ime otu akwa oyi akwa, okpukpu abụọ oyi akwa, afụ atọ, transperent ahịrị, wdg.
The Hydraulic Sistem na-agbaso usoro dị iche iche, arụmọrụ dị elu na ọsọ ọsọ

Specifications

Serial number	Material PE、PP、PVC、PA...	Mold-moving series
Serial number	Material PE、PP、PVC、PA...	Machine model:KGB5D
Specifications
1	Max container capacity	5L
2	Output(dry Cycle)	500 PC/HR x2 PC/HR
3	Machine Dimension(L×W×H)	3.2 M×2.2 M×2.5 M
4	Machine weight	5.2 T
Clamping Unit
1	Clamping force	65 KN
2	Mold platen size(W×H)	368 MMx450 MM
3	Platen openingstroke	188 MM-538 MM
4	Platen moving stroke	420 MM
5	Max mold size(W×H)	410 MM×450 MM
6	Mold thickness	200 MM-310 MM
Power
1	Servooil pump motor power	15 KW
2	Servo pump displacement	100 L/MIN
3	Blowpressure	0.6 Mpa
4	Air consumption	0.7 M³/MIN
5	Cooling water pressure	0.2 Mpa-0.3 Mpa
6	Water consumption	80 L/min
7	Average energy consumption	16 KW-25 KW
Extruder unit
1	Screw diameter	70 MM
2	Screw L/D ratio	25 L/D
3	HDPEMelting capacit for HDPE	80 Kg/hr
4	Number of heating zone	3 ZONE
5	Screw heating power	12.6 KW
6	Screw fanpower	0.25 KW
7	Extruder motor power	22 KW
Die head
1	Number of heating sections	3*8 ZONE
2	Heating power	3.7 KW
3	1MT Max die-pin diameter	150 MM
4	2 Center distance of double die head	150 MM-180 MM
5	2MT Max die-pindiameter	80 MM
