250l chịkọtara kemịkalụ na-egbu egbu callow

Model:KGB200L/LP

Nke a pụrụ iche 250l chịkọtara igwe eji eme ihe pụrụ iche iji mepụta igwe dị elu 220l abụọ na-acha anụnụ anụnụ. Itinye usoro mmeghe ahụ na-emeghe na ogwe aka na-emeghe okpukpu abụọ Dunchrous synchrorous system, ọ na-agba mbọ kwụsie ike ma na-adịgide adịgide.

Olu: 250lIbu ibu: 39t

Zipu ajụjụ

Nkọwa ngwaahịa Specification Application

Nke patentit letter okpukpu abụọ, okpukpu abụọ-kacha mma na-ekpokọta isi, jikọtara ya Na ngalaba Exchanger dị elu, na-enye nsonaazụ pụrụ iche. Nke a Chemical Barkel na-azọpụta igwe na-etinye ego na-etinye ego nke ọnwa Njikwa, ogwe aka robot, na ala na-akụ usoro maka arụmọrụ arụmọrụ. Ndị a na-emepụta ihe na-emepụta na-ezute ụkpụrụ dị mma, gụnyere ịgafe Nnwale 3-mita na inweta asambodo UN.

Atụmatụ na uru

Na-ahụ ụzọ okpukpu abụọ na-ahụ maka ebe nchekwa isi
● nweta ikike imepụta ihe dị elu site na imewe na izizi kachasị mma Nhazi, Nwere Ike nke Imepụta 17-20 Ibe / Oge
● A na-emepụta ihe ndị a na-eme nwere ike ịgafe ule 3m na UN zuru ezu mmezu

Barrel: 12-15 n'arọ

Ihe: hmwdpe

Ọkpụrụkpụ: 3.5-4 mm

Ezubere igwe ihe eji eme ihe na-egbu egbu ihe maka mmepụta nke ọma nke dị elu 220l okpukpu abụọ na-acha anụnụ anụnụ. Jiri usoro ndozi mepere emepe, okpukpu abụọ dị okpukpu abụọ na-adọkpụ synchronous system, ma tinye ya okpukpu abụọ, okpukpu abụọ-kacha mma na-abawanye isi, ọ na-ebute arụmọrụ pụrụ iche.

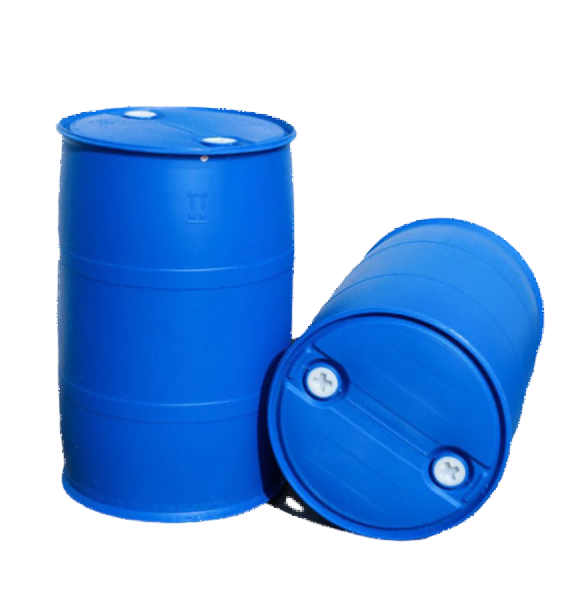

Double layer 220L double-ring chemical barrel blow molding machine

Osise

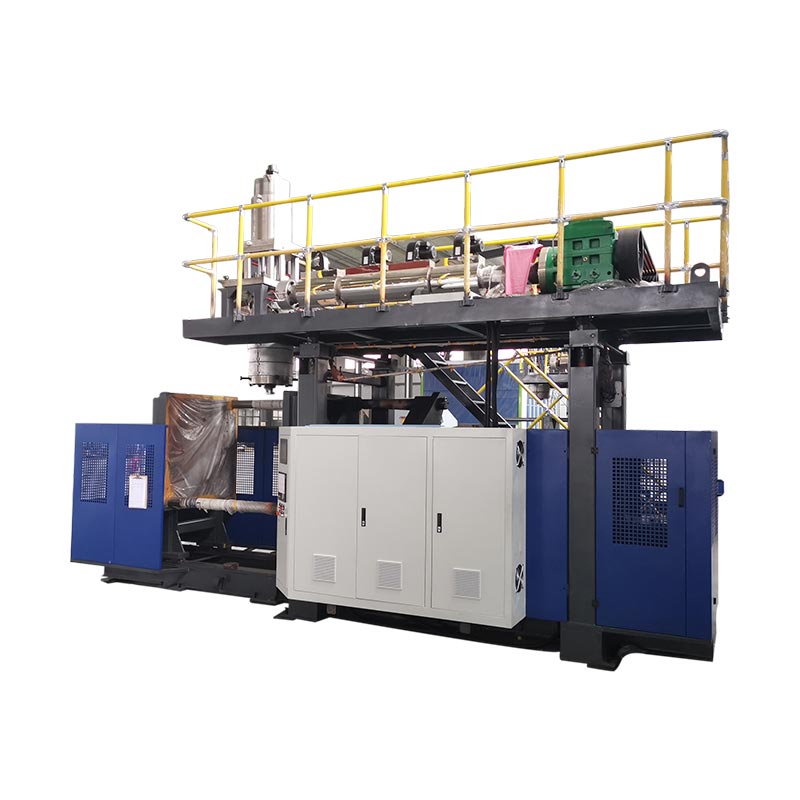

250L accumulate chemical barrel special blow molding machine

Specifications

Serial number	Material PE、PP、ABS、HMWHDPE..	Fixed open- closing type Specialized Machine Series
Serial number	Material PE、PP、ABS、HMWHDPE..	Machine model:KGB200L/LP
Specifications
1	Max container capacity	250 L
2	Output(dry Cycle)	300 PC/HR
3	Machine Dimension(L×W×H)	9.5 M x 4.1 M x 6.5 M
4	Machine weight	39 T
Clamping Unit
1	Clamping force	760 KN
2	Mold platen size(W×H)	1300 MM x 1500 MM
3	Platen opening stroke	800 MM - 1800 MM
4	Platen moving stroke	950 MM
5	Max mold size(W×H)	1100 MM×1700 MM
6	Mold thickness	810 MM-950 MM
Power
1	Servo oil pump motor power	37 KW + 22 KW
2	Servopump displacement	200 L/MIN + 138 L/MIN
3	Blow pressure	0.8 Mpa
4	Air consumption	1.8 M³/MIN
5	Cooling water pressure	0.3 Mpa
6	Water consumption	120 L/min
7	Average energy consumption	70 KW- 80 KW
Extruder unit
1	Screw diameter	100 MMx2 MM
2	Screw L/D ratio	32 L/D
3	Melting capacit for HDPE	180 Kg/hr x 2 Kg/hr
4	Number of heating zone	6 ZONE
5	Screw heating power	30.2 KW
6	Screw fan power	0.6 KW
7	Extruder motor power	90 KW x 2 KW
Die head
1	Number of heating sections	5 ZONE
2	Heating power	38.8 KW
3	Max die-pin diameter	450 MM
4	Accumulator capacity	25 L
5	(PE)Accumulator weight	18 KG
