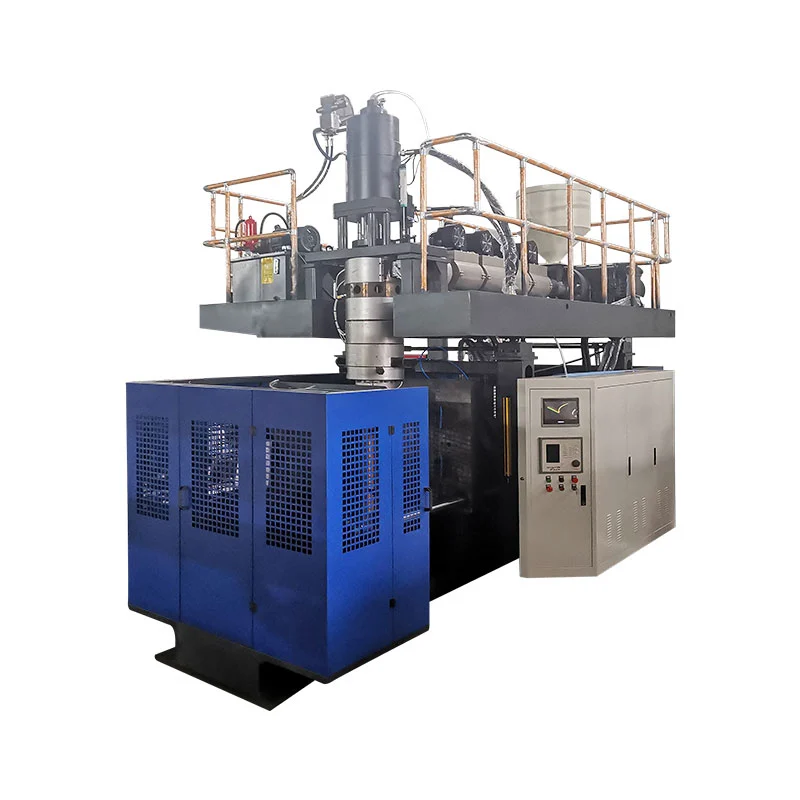

60l concevetor flow igwe

Model:KGB90AP

Maka kgb90ap, ike na-arụ ọrụ 60l na-akụ egwu egwu igwe na-egosi okpukpu abụọ oyi akwa ma ọ bụ na-acha odo odo na-akpụ akpụ akpụ akpụ. Ezubere ya n'ụzọ pụrụ iche maka okpukpu abụọ na agba abụọ 60l flow nsen na-akpụ akpụ, dị ka igbe igbe ihe na-eme ka ọ bụrụ igwe igwe / ụlọ ọrụ, ọ na-eme ka ntụkwasị obi ogologo oge na nchekwa ego.

Olu: 60lIbu ibu: 15t

Zipu ajụjụ

Nkọwa ngwaahịa Specification Application

Kgb90ap 60L consulator na-akụ egwu igwe nwere usoro a na-apụ nwere ike ịdaba okpukpu abụọ ma ọ bụ ihe na-emepụta ihe na-emepụta ihe Ngwaahịa rang.
Gụnyere Moog 100 onye na-ahụ maka ọkpụrụkpụ, ogwe aka Robet, na Bottom Sistem, na-eme ka arụpụta ihe na ngwaahịa ngwaahịa. Igwe a vasatil dị mma maka ngwa dị iche iche, gụnyere kemịkalụ kemịkal na-azọ Ngwọta igwe, mkpụrụ osisi rọba na-akpụ akpụ usoro usoro ,.

Atụmatụ na uru

Ihe nlere a bu uzo eji emeghe na ụdị mmechi, na-eji mkpanaka okpukpu abụọ usoro mmegide na-emeghe usoro, na cylinder mmanụ mwekota
Nchekwa na-echekwa usoro isi
Oke olu 60l
Foto dị mma, wdg.
Iji teknụzụ pụrụ iche, usoro nrụpụta usoro, nnukwu clamping ike, ọsọ ọsọ ọsọ ọsọ ọsọ, ngwa ngwa ngwaahịa dị mkpụmkpụ

Specifications

serial number	Material PE、PP、ABS ...	Mold closing oil cylinder(single cylinder)
serial number	Material PE、PP、ABS ...	Machine model:KGB90AP
Specifications
1	Max container capacity	60 L
2	Output(dry Cycle)	500 PC/HR

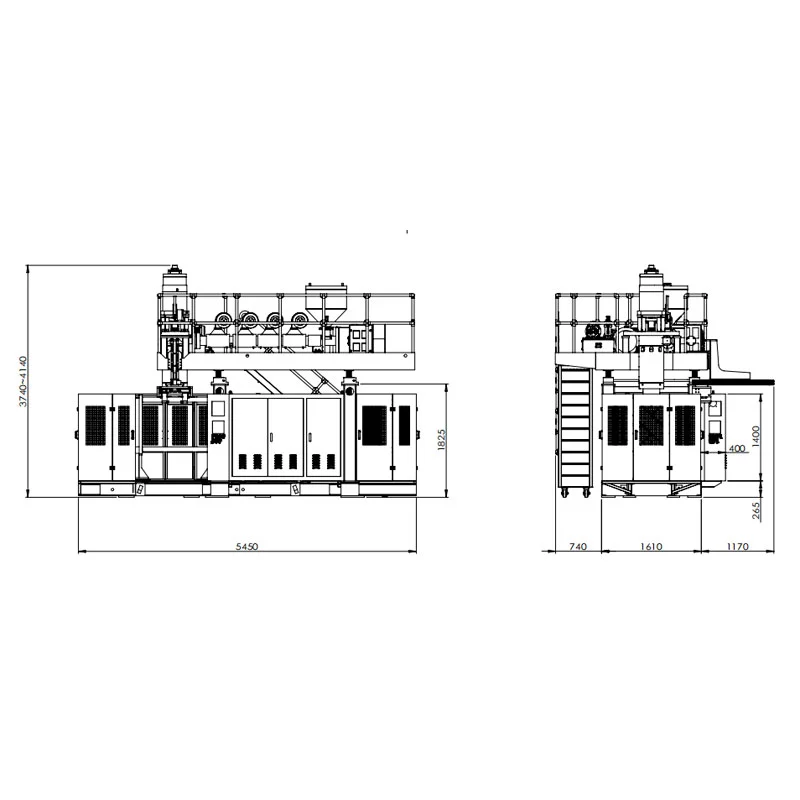

3	Machine Dimension(L×W×H)	5.45 M x 3.5 M x 4.2 M
4	Machine weight	15T
Clamping Unit
1	Clamping force	280 KN
2	Mold platen size(W×H)	960 MM x 980 MM
3	Platen openingstroke	450 MM -1050 MM
4	Platen moving stroke	500 MM
5	Max mold size(W×H)	700 MM×980 MM
6	Mold thickness	460 MM -550 MM
Power
1	Servooil pump motor power	18.5 KW
2	Servo pump displacement	150 L/MIN
3	Blowpressure	0.8 Mpa
4	Air consumption	1 M²/MIN
5	Cooling water pressure	0.3 Mpa
6	Water consumption	90 L/min
7	Average energy consumption	35 KW - 45 KW
Extruder unit
1	Screw diameter	2*70 MM
2	Screw L/D ratio	24 L/D
3	Melting capacit for HDPE	130 Kg/hr - 160 Kg/hr
4	Number of heating zone	4 ZONE
5	Screw heating power	17.6 KW
6	Screw fanpower	0.5 KW
7	Extruder motor power	2*22 KW
Die head
1	Number of heating sections	5 ZONE
2	Heating power	26.8 KW
3	Maxdie-pin diameter	320 MM
4	Accumulator capacity	6.6 L
5	(PE)Accumulator weight	4.95 KG
