Abs Abs Pụrụ Iche Igoti

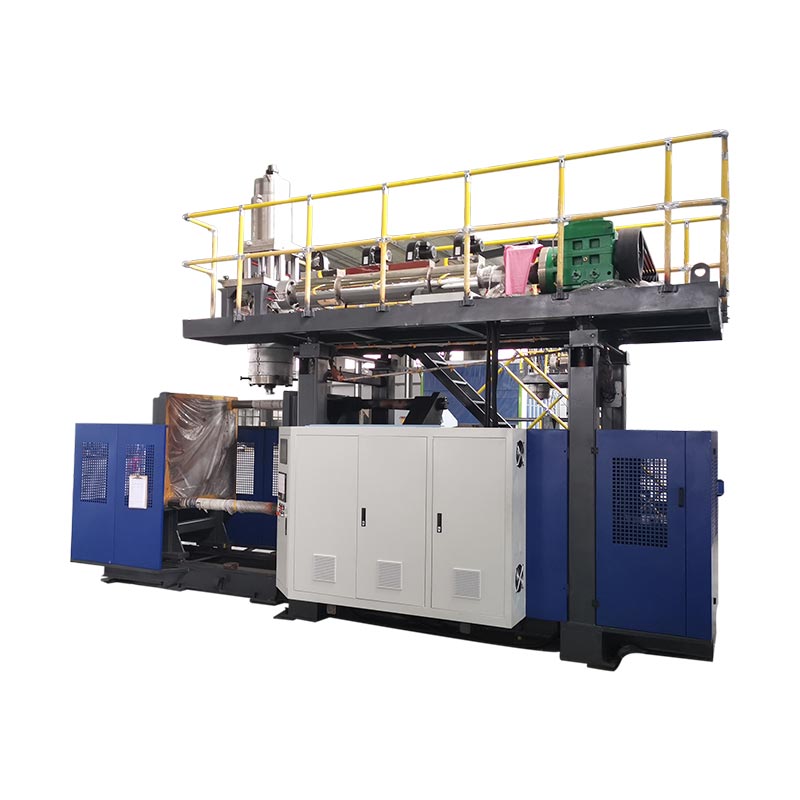

Model:KGB110A-ABS

Gbanwee mpaghara akpaaka gị na KGB110A-Abs, a ga-egbua abụba abs pụrụ iche na-ebelata igwe na-eme ka ngwa ngwa na-akpụ akpụ ngwa ngwa! Zuru okè maka Am na-eme ka igwe ihe na-egbu egbu dị ka ndị na-emebi ihe na dashboards, ọ na-enyere gị aka iduzi ahịa automateve na mma.

Olu:Ibu ibu: 25T

Zipu ajụjụ

Nkọwa ngwaahịa Specification Application

KGB110A-Abs bụ ihe pụrụ iche na-akpụ akpụ igwe maka akụkụ akpaaka ndị ahụ onye nrụpụta. Igwe eji eme ihe eji egwuri egwu di iche iche na aputa ihe di elu Mepụta elu zuru oke iji chekwaa oge a. Na igwe ahaziri iche Platen iji kwado ngwaahịa nke na-eme ihe, chekwaa ụgwọ itinye ego.

Atụmatụ na uru

Na-egwu ala n'ime ike nke teknụzụ nwere ike inye ihe ngwọta ngwaahịa dị elu maka ndị ahịa na-achụsi ike - ịdị irè; Nwekwara ike iwulite ihe eji eme ihe ma ọ bụ ihe eji eme ihe
Ike isi ihe nke 110a-abs ab abs na-azọpụ igwe na sistemụ ike hydraulic na ntụkwasị obi. Pịnye ike na-aga n'ihu na nkwụghe na-emeghe na imeghe nke ebugharị, na nke arụ ọrụ nke ọma, akụrụngwa nwere ike ịdịgide ọnọdụ dị mma ma rụọ ọrụ na-arụpụta ngwaahịa dị elu.

Specifications

serial number	Material PE、PP、ABS、HMWHDPE...	Specialized Machine Series
serial number	Material PE、PP、ABS、HMWHDPE...	Machine model:KGB110A-ABS
Specifications
1	Max container capacity	/
2	Output(dry Cycle)	300 PC/HR
3	Machine Dimension(L×W×H)	6.6 M x 4.2 M x 5.2 M
4	Machine weight	25 T
Clamping Unit
1	Clamping force	1000 KN
2	Mold platen size(W×H)	1100 MM x1600 MM
3	Platen openingstroke	600 MM -1600 MM
4	Platen moving stroke	600 MM
5	Max mold size(W×H)	1000 MM×1400 MM
6	Mold thickness	610 MM -750 MM
Power
1	Servooil pump motor power	30 KW + 22 KW
2	Servo pump displacement	200 L/MIN +138 L/MIN
3	Blowpressure	0.8 Mpa
4	Air consumption	1.8 M²/MIN
5	Cooling water pressure	0.3 Mpa
6	Water consumption	120 L/min
7	Average energy consumption	70 KW - 80 KW
Extruder unit
1	Screw diameter	110 MM
2	Screw L/D ratio	28 L/D
3	Melting capacit for HDPE	180 Kg/hr -220 Kg/hr
4	Number of heating zone	4 ZONE
5	Screw heating power	24 KW
6	Screw fanpower	0.6 KW
7	Extruder motor power	90 KW
Die head
1	Number of heating sections	5 ZONE
2	Heating power	38.5 KW
3	Maxdie-pin diameter	450 MM
4	Accumulator capacity	12(20) L
5	(PE)Accumulator weight	9(15) KG
